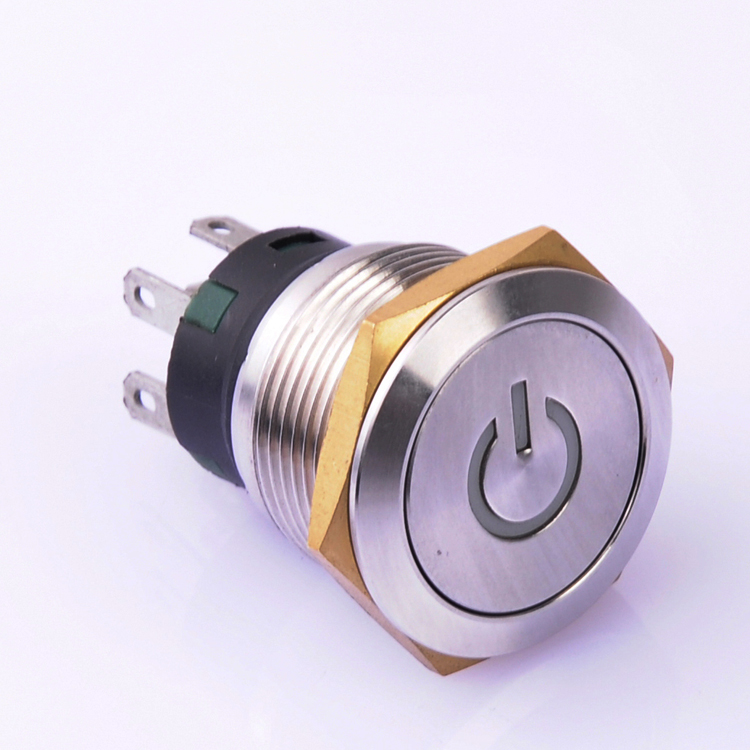

19mm Stainless Steel IP67 Momentary Push Button Switch

FOB Reference Price:Get Latest Price
  • 100 - 499 Pieces
    $2.90
  • >=500 Pieces
    $2.60
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Toowei
Model Number:
A5196
Protection Level:
IP67
Max. Current:
8A
Max. Voltage:
250V
Rating:
5A 250V 8A 125V
Temperature:
-25~80℃
Mechanical Life:
800,000 Cycles
Electrical Life:
200,000 Cycles
Function:
self-locking/momentary
Insulation Resistance:
100MΩ Min
Dielectric strength:
1,500VAC/Min/0.5mA
Ingress Protection:
IP67
Panel Cutout:
19mm
Contact Arrangement:
SPDT or DPDT
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs/box, 400pcs/carton
Port
shanghai/ningbo

19mm Stainless Steel IP67 Momentary Push Button Switch

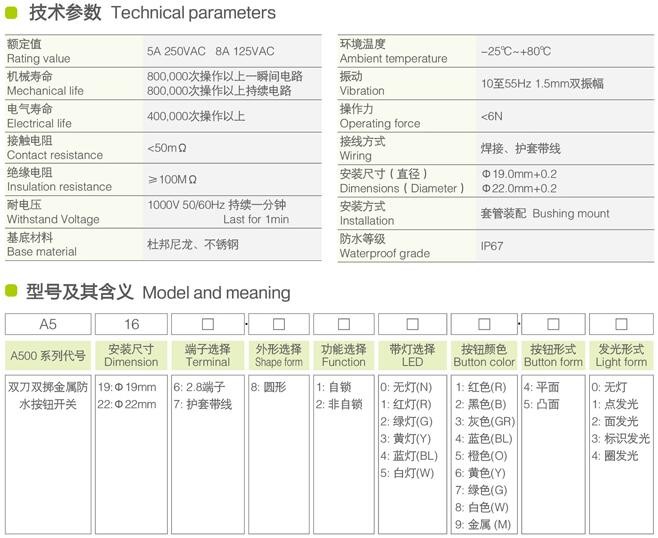

Product Description


Rating value

5A 250VAC 8A 125VAC

Mechanical life

≥800,000 times

Electrical life

≥200,000 times

Contact resistance

<50mΩ

Insulation resistance

≥100MΩ

Operating temperature

-25°c~+80°c

Operating force

5~6N

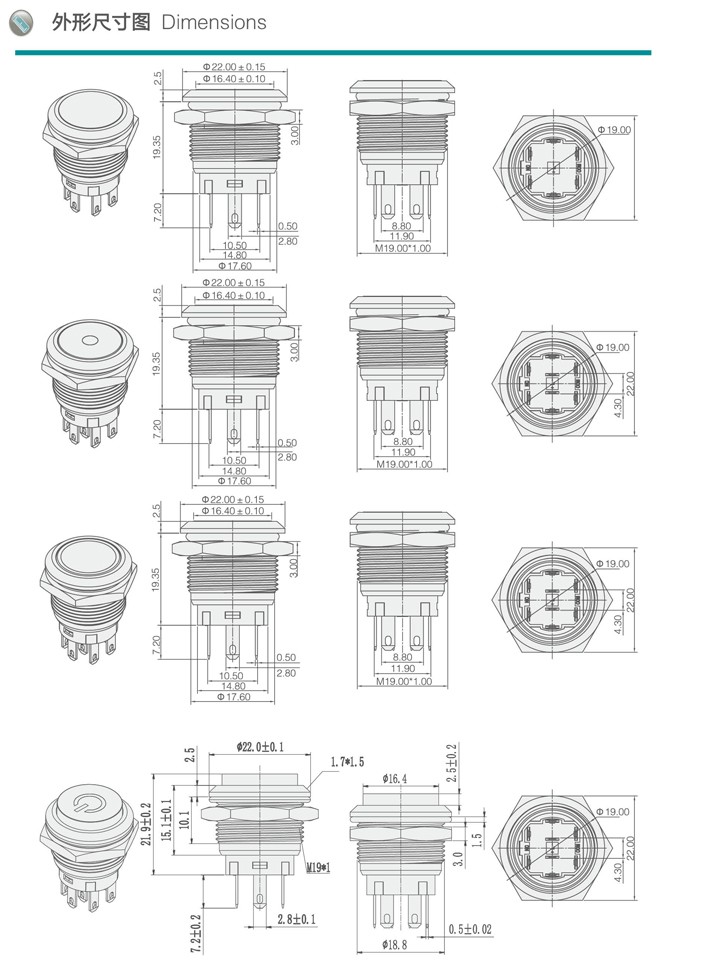

Panel cutout

Diameter:Φ16.0mm+0.2

Installation

threaded bushing

Waterproof grade

IP67

Feature



1, 2 NO. +2 NC.

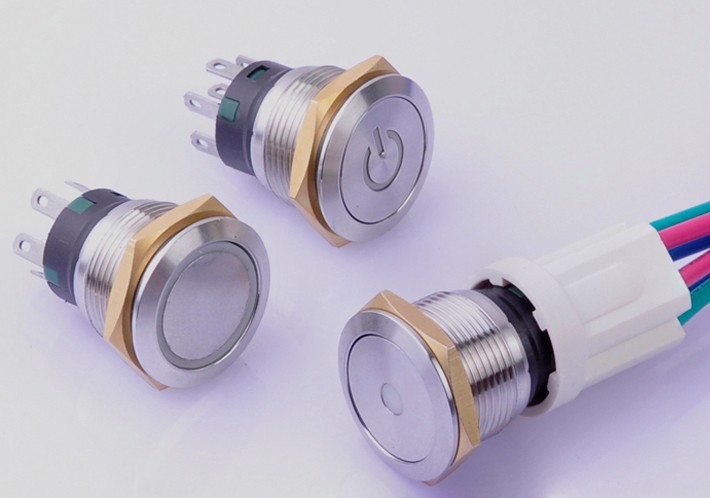

2,Round actuator, available in many different colors.

3,gold plated or silver contacts.

4, Latching action : actuator remains in the low position.
5,Flat round actuator for optional marking
6,High brightness illumination
7,Five LED colors:red,green,yellow,blue and white

8,Eight actuator colors:red,black,gray,blue,orange,yellow,green and white
9, Illuminated or non-illuminated sealed to IP67
10, Compact, light in weight
